Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor

  • 1
  • 2
  • 3

Brand Name : Jingpu Brand

Model Number : MF5A-7

Certification : CE,ROHS,ISO9001,ISO13485,UL

Place of Origin : Hefei, Anhui, China

MOQ : 1000

Price : USD 0.1-5 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : Ceramics

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : Yellow

Warranty : 2 years

After-sale service : Quality Assurance

Chip : NTC Thermistor

Customization : Yes

Operating Temperature : Normal or low temperature

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : PVC, , Enamel Insulation

Free Sample : Yes

Contact Now

Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor



Brief Instruction:

MF5A-7 plastic housing type NTC thermistor, manufactured by Hefei Jingpu Sensor Technology Co.,Ltd, consist of NTC chip, HDPE/PP/PVC housing and the insulated wire (FEP/PVC/PVDF wire). The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K.



Features:

Comply for ROHS standard

High precision to ±0.1℃ from the temperature 25℃ to 45℃



Application:

Human body temperature measurement

Medical electric equipment

Skin / coelom / body temperature measurement

Adult / pediatric esophageal / rectal / air / skin temperature monitoring

Medical equipment, health monitor



Structure and Dimensions:



Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor

Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor



Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor





Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Approx.2.5 Approx.20 Normal or low temperature 30-1000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

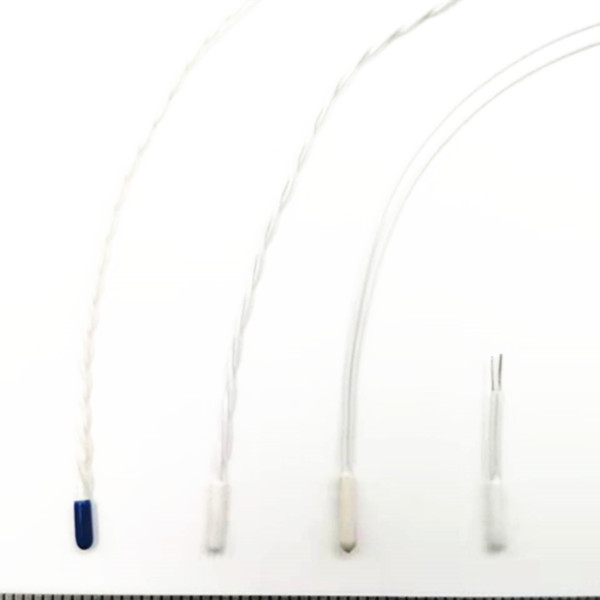

Product picture:



Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor



Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor



Standard packing (inner packing): 100~500pcs/polybag
