B Value 3950K Glass Bead Thermistor 10kohm Resistance

Name: B Value 3950K Glass Bead Thermistor 10kohm Resistance
Brand: JP SENSOR
Price: 1 USD

Buy cheap B Value 3950K Glass Bead Thermistor 10kohm Resistance product

Brand Name : JP SENSOR

Model Number : MF57

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 2000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Standard Packing

R25 : 10KΩ±1%

B25/50 : 3950±1%

Glass probe : 1.3mm

Chip : NTC Thermistor

Application : home appliance, automotic electronic, Industrial device,etc

Wire : Dumet wire

After-sale service : Quality assurance

Shipping : Air Freight, Express, Sea Freight

Contact Now

B Value 3950K Glass Bead Thermistor 10kohm Resistance

Product Description:

B Value 3950K Glass Bead Thermistor 10kohm Resistance is one of NTC thermistor sensors, which is made of glass bead, thinner dumet wire.The high-temperature resistance is its feature. And it is widely applied for automatic electronics, home appliances, industrial devices, etc.

Features:

R25=10KΩ±1%,B25/50=3950±1%

glass encapsulation

high temperature resistant

Operating temperature range: -40℃~300℃

Glass probe 1.3mm

Application:

Home appliance

Automotive electronic

Industrial device etc

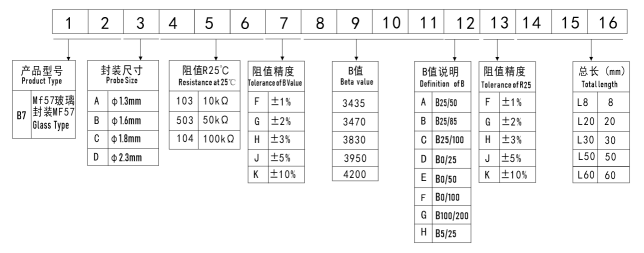

Part Number Code:

B Value 3950K Glass Bead Thermistor 10kohm Resistance

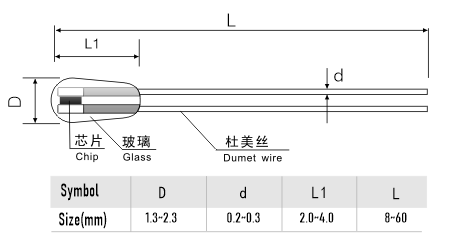

Structure and Dimensions:

B Value 3950K Glass Bead Thermistor 10kohm Resistance

Electrical Specification:

Rec.at 25℃(KΩ)	Beta value	(In air) Pmax(mW)	δ (mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
2	B25/85=3470	Approx.20	Approx.0.75	Max.10	-40~300	50
2	B25/85=3977
5	B25/85=3950
10	B25/85=3435
10	B25/50=3950
50	B25/50=3950
100	B25/50=3950
100	B25/85=4132
100	B25/50=4200
