10kohm NTC thermistor probe

Name: 10kohm NTC thermistor probe
Brand: JP SENSOR
Price: 1 USD

Buy cheap 10kohm NTC thermistor probe product

Brand Name : JP SENSOR

Model Number : MF57

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packing

Resistance : 10kΩ

B Value : 3435K

Tolerance : ±1%

Product Name : Glass coating ntc thermistor

Encapsulation : glass encapsulation

Operating temperature range : -40℃~300℃

Probe : 1.3mm Glass Probe

Feature : High temperature resistant

Contact Now

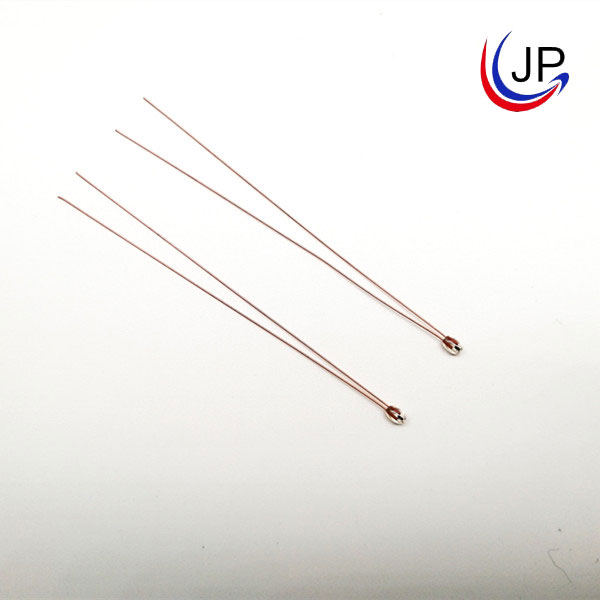

10kohm NTC thermistor probe

Brief Introduction:

As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor be widely applied for automatic electronics, home appliances, industrial devices, etc.

Features:

glass encapsulation

high temperature resistant

Operating temperature range: -40℃~300℃

R25=10KΩ±1%,B25/85=3435±1%

Glass probe 1.3mm

Application:

home appliance

automotive electronic

Industrial device etc

Part Number Code:

10kohm NTC thermistor probe

Structure and Dimensions:

10kohm NTC thermistor probe

NO.	Name	Material Specification	QTY.	Remarks
1	Chip	NTC Chip	1	/
2	Encapsulation	Epoxy resin	1	/
3	Probe	SUS 304	1	/
4	Wire	UL4413 26awg 150℃	1	/

Symbol	D	d	L1	L
Size(mm)	1.3 - 2.3	0.2 - 0.3	2.0 - 4.0	8 - 60

Electrical Specification:

Rec. at 25℃(KΩ)	Beta value	(In air) Pmax(mW)	δ (mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
2	B25/85=3470	Approx.20	Approx.0.75	Max.10	-40~300	50
2	B25/85=3977
5	B25/85=3950
10	B25/85=3435
10	B25/50=3950
50	B25/50=3950
100	B25/50=3950
100	B25/85=4132
100	B25/50=4200

Product Display:

10kohm NTC thermistor probe

You may also like:

10kohm NTC thermistor probe

Product Tags:

10kohm NTC Thermistor Probe

3435K ntc thermistor probe

1.3mm ntc temperature sensor
